RaceReady's Local Network Explaine


Quick Tips:
1. Always have your Live Timing operator connect to the local network (the Wifi Network Name should start with "raceready-5-")
2. In a web browser, navigate to http://172.16.10.2/. THIS IS WHERE THE LIVE TIMING OPERATOR SHOULD STAY DURING THE ENTIRE RACE.
3. You can only connect to the local network when the Hardware box is powered on
You can find the network in your wifi connection on your laptop
always connect to raceready2.4G and not 5G

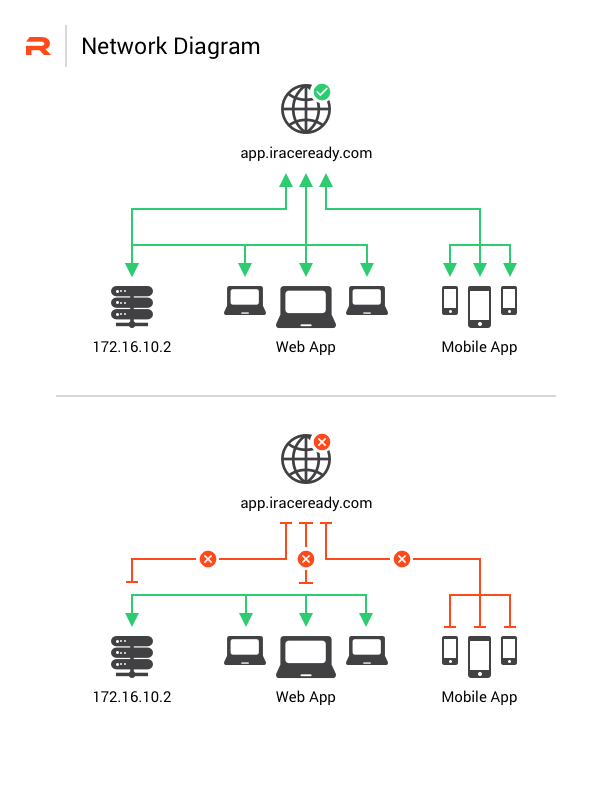

Diagram of Network



When logging in to the local version of the software, just use the same credentials as you use to log in to your online raceready account. If you have login trouble, you can reset your password on the local connection and it will update the same new password on your online account.

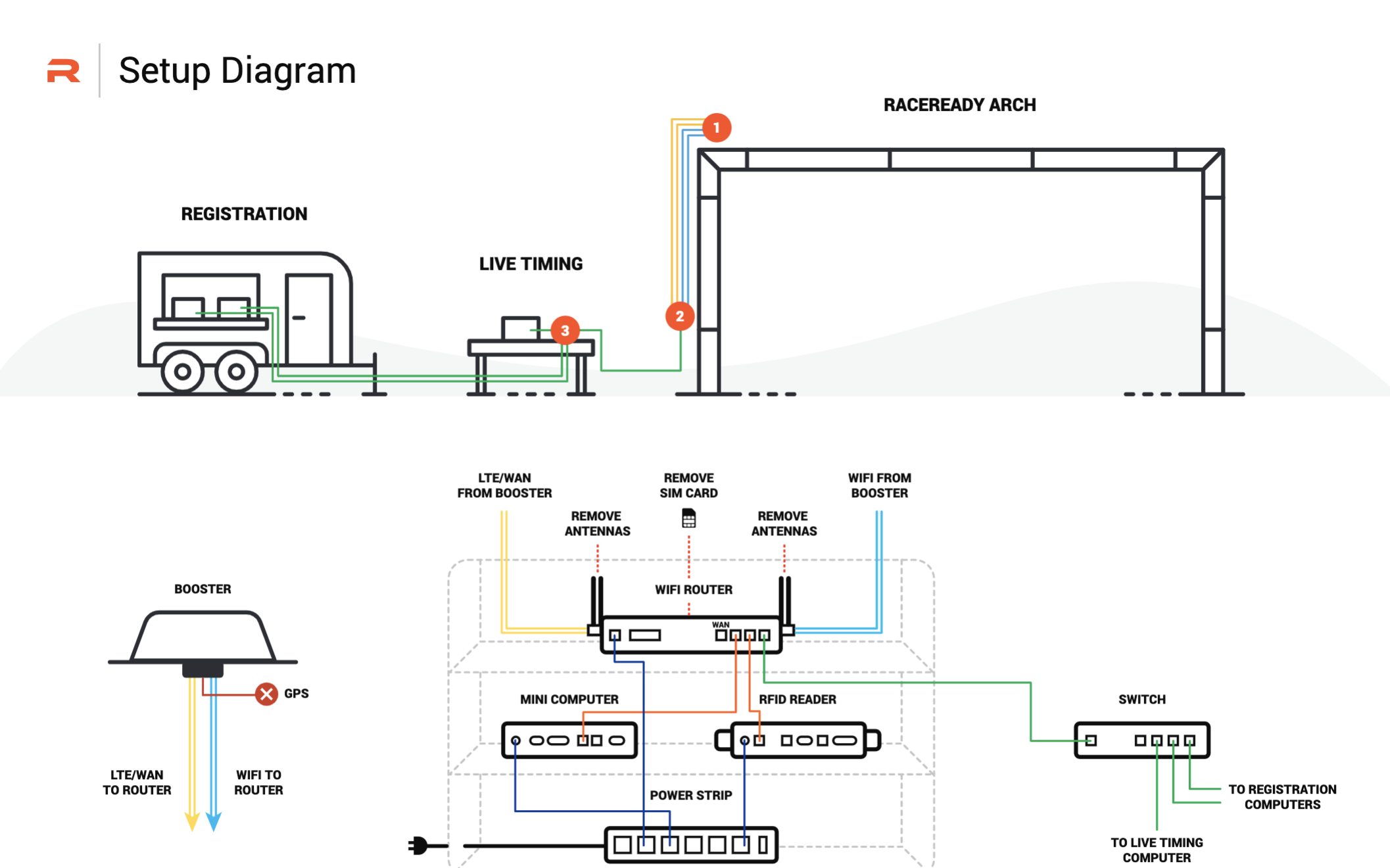

Wire Diagram for Finish line set up:

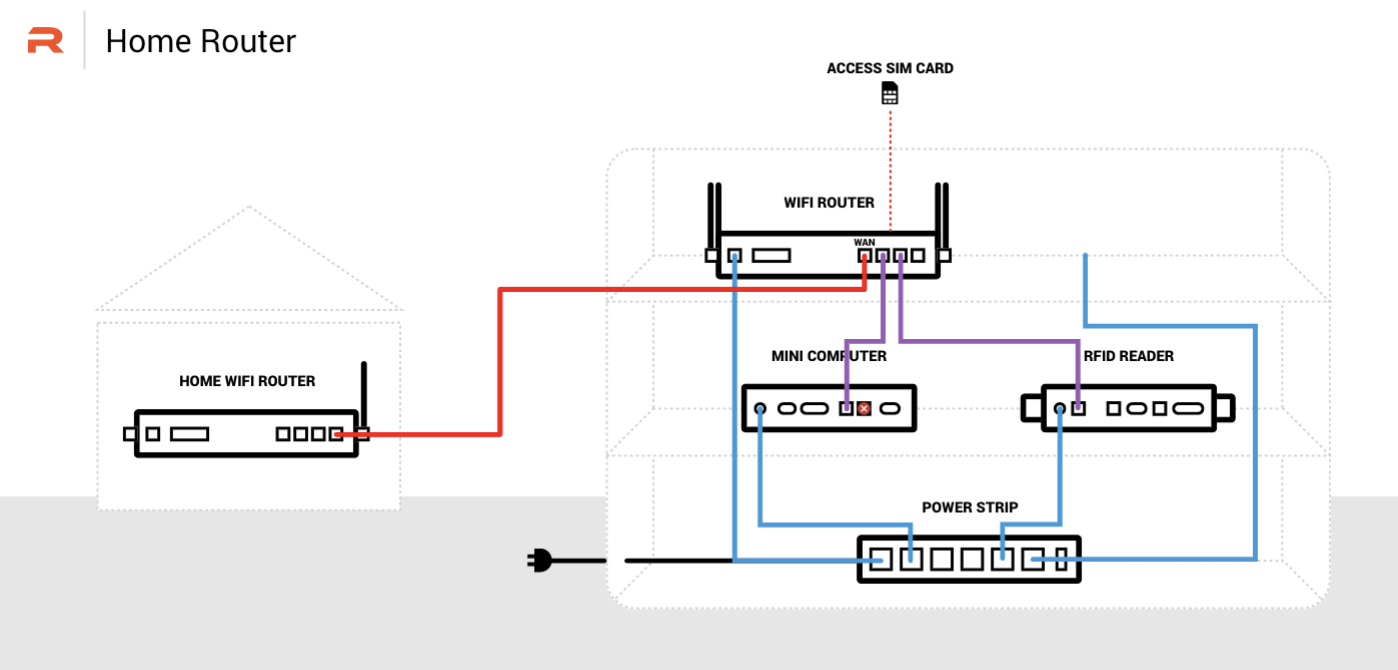

Connect the RR Box to your home router:
