For Promoters: Local Networking Hardwire Setup

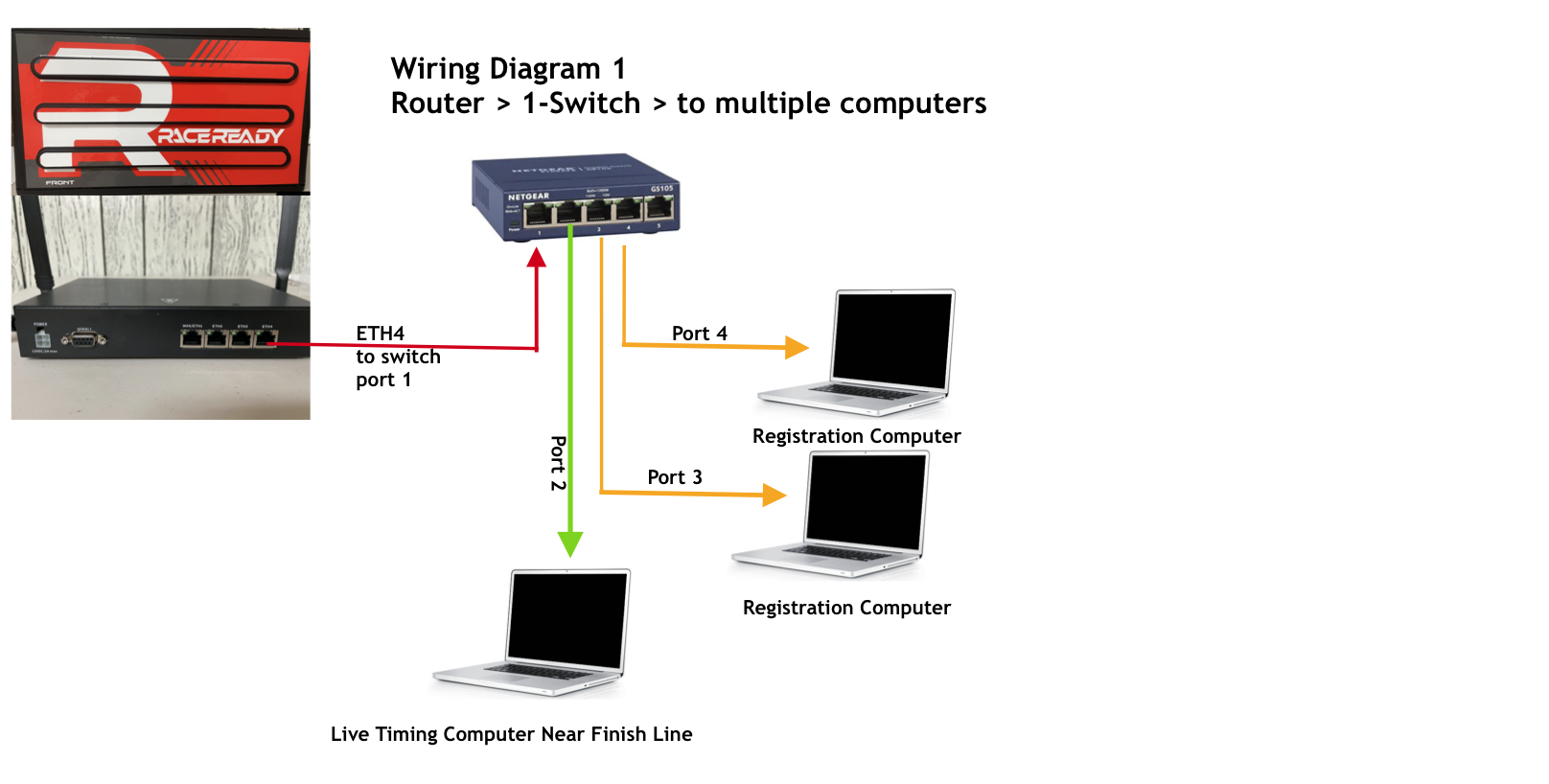

Wiring Diagram 1
Use Case: when all computers are close to the finish line use 1 Netgear switch as seen in the diagram

Links to purchase items:


Netgear Switch

Cat5 Ethernet Cables

Ethernet to USB

Ethernet Coupling




  1. Hang the RaceReady Box on the finish line arch
  2. Run an ethernet cable from the RR router over to a Netgear unmanaged switch
  3. Run Ethernet cables from the switch to all desired computers
NOTE:
**plug the ethernet cable from the RR router into port 1 on the Netgear switch for it to work correctly**
**use remaining ports in the Netgear switch to run cables to your computers**

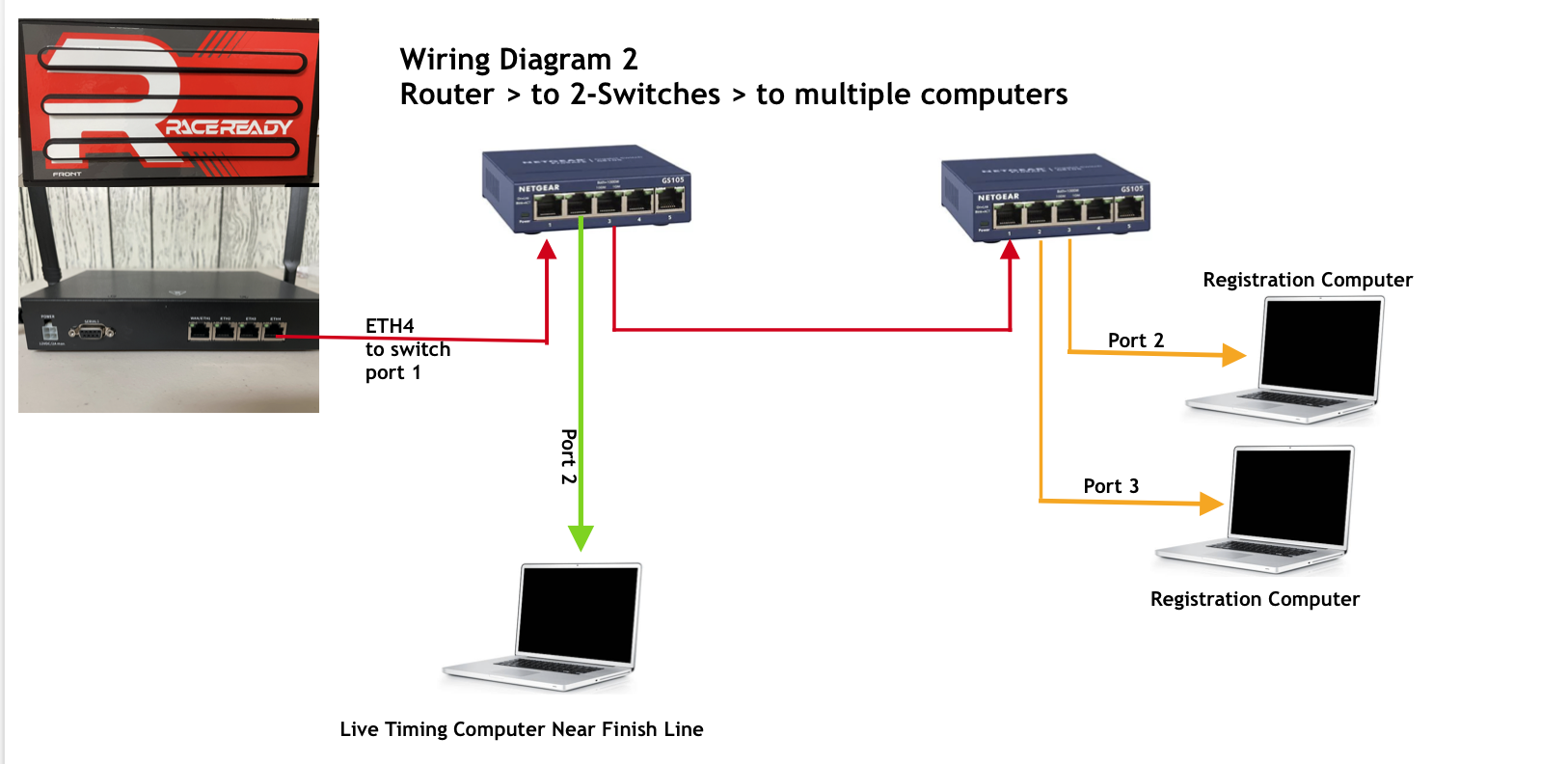

Wiring Diagram 2
Use Case: when registration is far away from the finish line use 2 Netgear Switches.

  1. Hang the RaceReady Box on the finish line arch
  2. Run an ethernet cable from the RR router over to a Netgear unmanaged switch
  3. Run an ethernet cable from switch 1 to your Live Timing Computer
  4. Run Ethernet cables from switch 1 to port 1 of switch 2
  5. Run ethernet cables to all desired computers
NOTE:
**plug the ethernet cable from the RR router into port 1 on the Netgear switch for it to work correctly**
**plut the ethernet cable from switch 1 into port 1 of switch 2 for it to work correctly**
**use remaining ports in the Netgear switch 2 to run cables to your computers**
